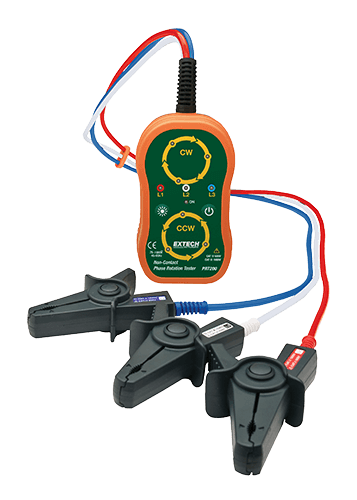

EXTECH PRT200 非接触式相序测试仪 (75~1000VAC)
制造商: EXTECH Model: PRT200 来源: Taiwan - 联系
Input Voltage: 75 to 1000VAC
Max conductor diameter: 33mm (1.3”)
Probe length: 86cm (34”)
Auto-Off: 5 min. without sequence detection
Low
Batteries: 4 x 1.5V AA
Current consumption: 15mA
Complete with three built-in 30" test leads with large color-coded alligator clips, four AA batteries, and pouch case
Details
Features
- 75 to 1000VAC input voltage with 45 to 65Hz frequency range
- LEDs indicate phase orientation (clockwise or counter-clockwise) and whether each phase is live
- Beeper sounds intermittently when correct phase is detected and continuously if phase is reversed
- Durable housing with back cover magnet for attachment to an AC distribution panel for easy measurement
- Adjustable Hi/Lo LED brightness switch for making measurements in dimly lit areas or sunlight
- Fully insulated alligator clips with wide jaws
- Low battery warning
- Complete with three built-in 30" test leads with large color-coded alligator clips, four AA batteries, and pouch case
