EXTECH MG500 数字高压绝缘测试仪（800kΩ~500GΩ，500VDC至10kVDC）

- Insulation Resistance: 800kΩ to 500GΩ ( Autoranging )
- Resolution: 1kΩ
- Basic Accuracy: ±5%
- Test Voltages:  500VDC to 10kVDC (adjustable in 500V steps)
- Preset Buttons: 1kV, 2.5kV, 5kV, 10kV
- Polarization Index : Yes
- Dielectric Absorption Ratio:  Có
- Automatic Discharge:  Yes
- Dimensions:  13x10.2x6.3" (330x260x160mm)
- Weight:  7.9lbs (3.6kg)
Complete with built-in heavy duty carrying case with cover, test leads, alligator clips, and 8 x C batteries




Detail



Manual

Catalog

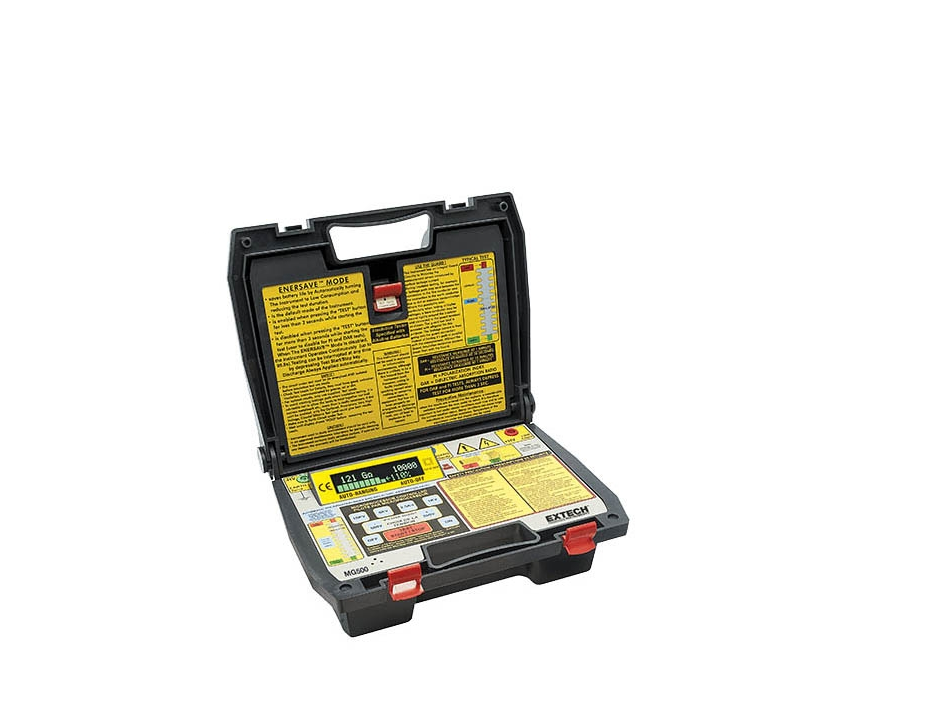

MG500: Digital High Voltage Insulation Tester

Tests voltage up to 10kV and measures Insulation Resistance to 500GOhm

Features:

  • High test voltages up to 10kV with Insulation Resistance to 500GOhm
  • Polarization Index (PI) measurement
  • Dielectric Absorption Ratio (DAR) measurement
  • EnerSave™ limits test duration to 10 seconds to save energy
  • Complete with built-in heavy duty carrying case with cover, test leads, alligator clips, and 8 x C batteries
