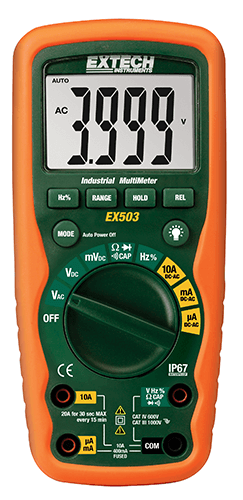

EXTECH EX503 Function Heavy Duty Industrial MultiMeter
制造商: EXTECH Model: EX503 来源: China - 联系
Display Counts: 4,000 count
Basic Accuracy: 0.5%
DC/AC Voltage: 0.1mV to 1000VDC, 0.1mV to 1000VAC
DC/AC Current: 0.1μA to 10A
Resistance: 0.1Ωto 40MΩ
Capacitance: 0.01nF to 100μF
Frequency (electrical): 5Hz to 1kHz
Frequency (electronic): 0.001Hz to 10 MHz
Duty Cycle: 0.1 to 99.90%
Diode/Continuity: yes
Dimensions: 184x83x57mm
Weight: 12.3oz (349g)
Complete with double molded test leads, magnetic hanging strap, carrying case, and one 9V battery
Details
Features
- Averaging DMM with 10 functions and 0.5% basic accuracy
- AC/DC Voltage & Current, Resistance, Capacitance, Frequency, Duty Cycle, Diode/Continuity
- Dual sensitivity frequency functions (electrical/electronic)
- 1000V input protection on all functions
- 10A max Current
- Data hold, Relative, Auto power off
- 4,000 count large backlit LCD
- Double molded housing for waterproof protection
- Complete with double molded test leads, magnetic hanging strap, carrying case and 9V battery
