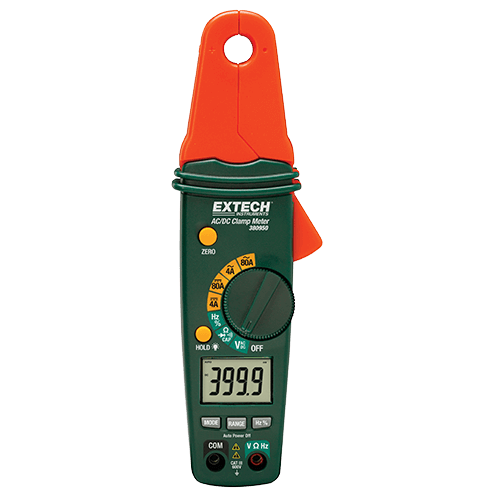

EXTECH 380950 迷你AC / DC钳形表 (80A)

Display counts: 4000 count LCD

Jaw size/Cable size: 0.5" (12mm); 3/0 AWG

AC Current: Range: 4A, 80A

                    Resolution: 1mA

                    Accuracy (%rdg+digits): ±(2.5% + 5d)

DC Current: Range: 4A, 80A

                    Resolution: 1mA

                    Accuracy (%rdg+digits): ±(2.5% + 4d)

AC Voltage: Range: 400mV - 600V

                    Resolution: 0.1mV

                    Accuracy (%rdg+digits): ±(2.0% + 4d)

DC Voltage: Range: 400mV - 600V

                    Resolution: 0.1mV

                    Accuracy (%rdg+digits): ±(1.5% + 3d)

Resistance: Range: 400Ω - 40MΩ

                    Resolution: 0.1Ω

                    Accuracy (%rdg+digits): ±(1.5% + 2d)

Frequency: Range: 5Hz - 10MHz

                   Resolution: 0.001Hz

                   Accuracy (%rdg+digits): ±(1.2% + 3d)

Duty Cycle: Range: 5 - 99.9%

                   Resolution: 0.1%

                   Accuracy (%rdg+digits): ±(1.2% + 3d)

Dimension/Weight: 8.3x2.8x1.5" (210x70x37mm)/7oz (200g)
