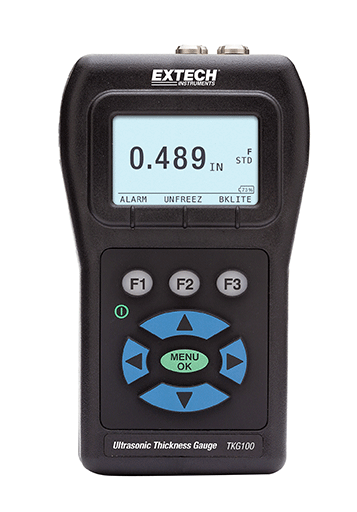

EXTECH TKG100 디지털 초음파 두께 측정기

Thickness Range (in Steel):

5MHz probe 0.040 to 20" (1.0 to 508mm);

10MHz probe: 0.020 to 20” (0.50 to 508mm) Option

Languages:English, French, Spanish, Italian, Czech, German, Portuguese, Slovak, Finnish, and Hungarian

Hold Mode Holds display to retain last thickness reading with reverse video display

Freeze Mode Freezes display (ideal for high temperature readings)

Fast Min/Max Mode Displays min or max and actual thickness value at 20 measurements/sec

Units Inches/Millimeters/Microseconds

Alarms Min/Max depth, beeps and display flashes as well as keypad illumination;  vibrate

Illuminating Keypad F1 = Red, F2 = Yellow, F3 = Green for easy, go/no-go testing

Battery Life: up to 50h

Complete with 2oz bottle of couplant, 2 AA batteries, 5MHz Transducer, and hard carrying case



Detail

Manual

Catalog

TKG100: Digital Ultrasonic Thickness Gauge

Compact rugged meter for non-destructive thickness measurements

Features:

  • Wide measurement range:
    • 5MHz probe: 0.040" to 20" of steel
    • 10MHz probe: 0.020” to 20" of steel (optional)
  • Sunlight readable dot-matrix display with backlight
  • Multiple transducer options for high temperature and difficult to measure materials
  • Fast minimum feature to capture minimum thicknesses
  • Complete with 2oz bottle of couplant, 2 AA batteries, 5MHz Transducer, and hard carrying case
For complete specs please download the product datasheet (not available for some accessories)
