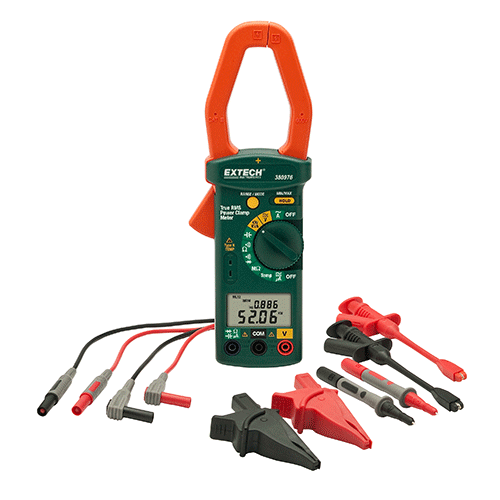

Extech 380976-K 단상/삼상 1000A AC 전원 클램프 미터 (1000A, True RMS)
생산업체: EXTECH Model: 380976-K 출처: Taiwan - 연락처
True Power (W): 600kW / 10W /±5%
Apparent Power(kVA): 600kVA / 100VA / ±2%
Reactive Power (kVAR) 600kVAR/10VAR /±5%
Horsepower (HP) 800HP/0.01HP/ ±5%
Phase Angle (f): -60 to +60° / 0.1° /±6°
AC Current: (Trms): 1000A / 10mA /±2%
uA Current (AC+DC) (Trms): 1000μA / 10nA /±1%
AC/DC Voltage: (Trms): 600V / 0.1mV /±1%
Resistance (Ω): 1000kΩ / 0.1Ω /±1%
Resistance (MΩ): 100MΩ / 1kΩ /±5%
Capacitance: 7000μF / 1nF /±1.5%
Frequency: 40Hz to 1kHz / 0.1Hz/ ±0.5%
Temperature (Type K): -58 to 1000°F / 0.1°F /±1%
-50 to 900°C / 0.1°C /±1%
Dimensions: 9 x 3 x 1.6" (228 x 76 x 39mm)
Weight: 16.4oz (465g
Complete with test lead kit, general purpose Type K thermocouple probe, carrying case, and 9V battery
Details
Features
- Large dual LCD display (9999 count)
- Measures 1Φ Phase/3Φ Phase True Power (kW), Apparent Power (kVA), and Reactive Power (kVAR), plus Horsepower (HP), Power Factor, and Phase Angle with Lead/Lag indicator
- AC+DC μA current with 10nA resolution for flame rod tests
- Max/Min recording with elapsed time indication
- Auto Detect AC/DC Voltage measurements with simultaneous frequency display
- Capacitance to 7000μF with 0.001μF resolution
- High resistance tests: 100MΩ
- Type K, °C/°F switchable, temperature to 1000ºF
- Continuity and diode testing
- Auto power off and includes disable feature
- Clamp jaw opening: 1.6" (40mm)
- Includes test leads, Type K probe (-58 to 482°F/ -50 to 250°C), carrying case and a nine volt battery
