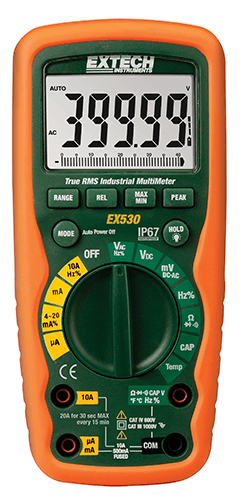

EXTECH EX530 Function Heavy Duty True RMS Industrial MultiMeter

Name: EXTECH EX530 Function Heavy Duty True RMS Industrial MultiMeter
Brand: EXTECH
SKU: EXTECHEX530
Availability: OutOfStock

Display Counts: 40,000 count

Averaging/True RMS: True RMS

Basic Accuracy: 0.06%

DC/AC Voltage: 0.01mV to 1000VD, 0.01mV to 1000VAC

DC/AC Current: 0.01μA to 20A

Resistance: 0.01Ωto 40MΩ

Capacitance: 0.001nF to 40mF

Frequency (electrical): 40Hz to 400Hz

Frequency (electronic): 0.001Hz to 100MHz

Temperature: -45 to 750°C

Duty Cycle: 0.1 to 99.90%

Diode/Continuity: yes

Dimensions: 184x83x57mm

Weight: 12.3oz (349g)

Complete with double molded test leads, magnetic hanging strap, Type K bead wire
temperature probe , carrying case, and one 9V battery

Details

Features

True RMS DMM with 11 functions and 0.06% basic accuracy
AC/DC Voltage & Current, Resistance, Capacitance, Frequency, Temperature, Duty Cycle, Diode/Continuity
Dual sensitivity frequency functions (electrical/electronic)
1000V input protection on all functions
20A max Current
MIN/MAX, Data hold, Relative, Auto power off
40,000 count large backlit LCD with bargraph
Double molded housing for waterproof protection
Complete with double molded test leads, magnetic hanging strap, Type K bead wire temp probe, carrying case and 9V battery
