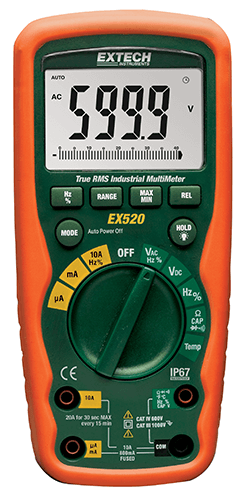

EXTECH EX520 機能重工業True RMSマルチメーター

Display Counts: 6000 count

Averaging/True RMS: True RMS

Basic Accuracy: 0.09%

DC/AC Voltage: 0.01mV to 1000VD, 0.01mV to 1000VAC

DC/AC Current: 0.01μA to 20A

Resistance: 0.01Ωto 40MΩ

Capacitance: 0.001nF to 100 μF

Frequency (electrical): 40Hz to 400Hz

Frequency (electronic): 0.001Hz to 40MHz

Temperature: -45 to 750°C

Duty Cycle: 0.1 to 99.90%

Diode/Continuity: yes

Dimensions:  184x83x57mm

Weight: 12.3oz (349g)

Complete with double molded test leads, magnetic hanging strap, Type K bead wire
temperature probe , carrying case, and one 9V battery

Details

Features:

  • Double molded for waterproof (IP67) protection
  • Rugged design — drop proof to 6 feet
  • True RMS
  • 6000 count
  • Type K Temperature
  • Capacitance
  • 1000V input protection on all functions
  • Dual sensitivity frequency functions
  • Large backlit LCD with bargraph
  • Duty Cycle function
  • Diode open circuit voltage of 2.8V DC
  • Auto power off with disable feature
  • Min/Max/Relative/Data Hold
  • CE and EN61010 CAT IV-600V, CAT III-1000V
  • Complete with double molded test leads, magnetic hanging strap, Type K bead wire temperature probe, carrying case, and one 9V battery
  • Three year warranty

 Datasheet

Manual
