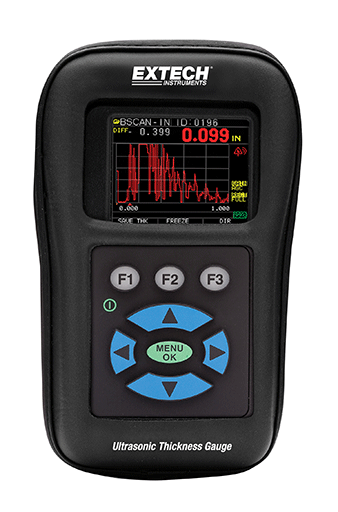

Extech TKG250 Digital Ultrasonic Thickness Gauge/Datalogger with Color Waveform

  • Manufacturer: EXTECH
    Model: TKG250
  • 3,114.00
  • Call for best price

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

- Thickness Range (in Steel):

+ 5MHz probe 0.040 to 20" (1.0 to 508mm);

+ 10MHz probe: 0.020 to 20” (0.50 to 508mm) Option

- Languages:English, French, Spanish, Italian, Czech, German, Portuguese, Slovak, Finnish, and Hungarian

- Hold Mode Holds display to retain last thickness reading with reverse video display

- Freeze Mode Freezes display (ideal for high temperature readings)

- Fast Min/Max Mode Displays min or max and actual thickness value at 20 measurements/sec

Units Inches/Millimeters/Microseconds

- Alarms Min/Max depth, beeps and display flashes as well as keypad illumination;  vibrate

- Illuminating Keypad F1 = Red, F2 = Yellow, F3 = Green for easy, go/no-go testing

- Gain - Variable adjustment: In 1dB steps from 20-90dB or Automatic Gain Control (ACG) for waveform

- B-Scan - Displays a cross section of the test piece: Encoded or Non-Encoded - displays with optional encoder

- Echo to Echo: Measure the metal thickness only (Paint & coatings do not affect base material thickness value)

- Differential Mode: Displays the difference from the actual thickness measurement and a user entered reference value

- Velocity Mode: Displays acoustic sound speed

- Datalogger: Records 100K readings in linear, 2D, 3D grid or boiler alphanumeric files, 20 character file name, export to excel via Extech XPorter interface program, also compatible with Ultrapipe. TKG250 also has fi le compare and grid review features

- Range: Adjustment of manual range control or auto zoom tracking to center echoes independent of selected range

- Rectification Modes: RF, Half Wave Positive, Half Wave Negative and Full Wave Rectification

- Live Waveform (A-Scan): Full adjustments for gain in 1dB step or AGC, main bang blank, blank after

first received echo, range including zoom auto tracking to center echoes independent of material and rectifi cation

Battery Life: 8 to 14hrs (depends on operating conditions)

All models include 2oz bottle of couplant, 2 AA batteries, Transducer (5MHz, 0.375" diameter ) with potted cable, and hard case. TKG150 and TKG250 also include protective holster, Echo to Echo, B-Scan, USB cable, and Extech XPorter software.

Manufacturer: Extech USA

Made in USA

Warranty: 12 month

Manual

Catalog

Features:

  • Wide measurement range:
    • 5MHz probe: 0.040" to 20" of steel
    • 10MHz probe: 0.020” to 20" of steel (optional)
  • Color LCD display with red, yellow and green visual alarm indication
  • 100K internal datalogger with export to Excel
  • Echo to Echo option to reduce coating errors
  • File compare feature as a real time corrosion monitor
  • Live Waveform (A-scan for thickness verifi cation)
  • B-scan (visual cross section of test piece)
  • Vibrates on alarm
  • Multiple transducer options for high temperature and difficult to measure materials
  • Complete with protective holster, 2oz bottle of couplant, 2 AA batteries, 5MHz Transducer, hard carrying case, USB cable and XPorter software
  • Fast minimum feature to capture minimum thicknesses
For complete specs please download the product datasheet (not available for some accessories)
