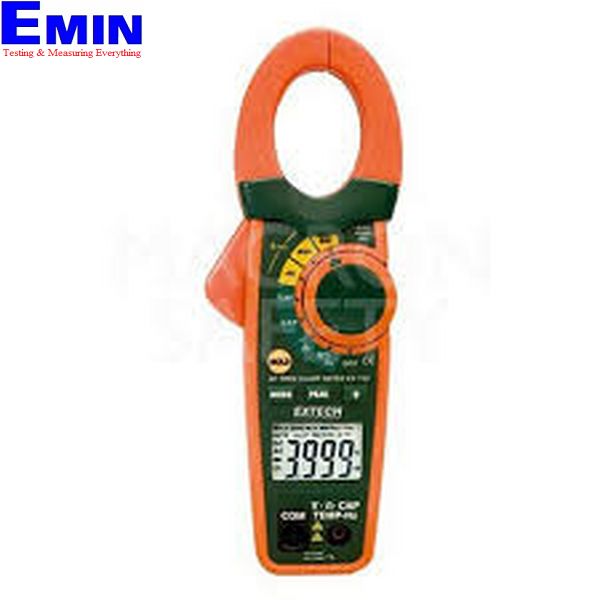

Extech EX720 AC Clamp Meter

AC Current: 0.01 to 800A /±2.5%

AC Voltage: 0.1mV to 600V /±1.5%

DC Voltage: 0.1mV to 600V /±1.5%

Resistance: 0.1 to 40MΩ /±1.0%

Capacitance: 0.001nF to 40,000μF /±3.0%

Frequency: 0.001 to 4kHz /±1.5%

Temperature Type K: 4 to 1400ºF ±3%rdg

Continuity:Yes

Inrush: Yes

Diode: Yes

Dimensions: 9x3.1x1.9" (229x80x49mm)

Weight: 10.7 oz (303g)

Complete with test leads, 9V battery, belt holster and general purpose Type K bead wire probe.

Manufacturer: Extech USA

Detail



Features:

  • True RMS
  • AC Current, AC/DC Voltage, Resistance, Frequency, Capacitance, Temperature, Diode, and Continuity
  • Peak function captures inrush currents and voltage transients
  • Data Hold “freezes” data in display
  • 1.2" (30mm) circular jaw opening forlarge cables (500MCM)
  • Auto power off
  • Complete with test leads, 9V battery, Type K bead wire probe, and carrying case
