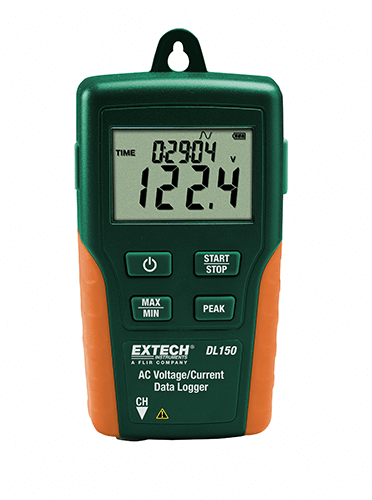

EXTECH DL150 True RMS AC Voltage/Current Datalogger

AC Current: 10 to 200A /0.1A /±(2% rdg ± 1A)

AC Voltage: 10 to 600V /0.1V /±(1.5% rdg ± 1V)

Memory: 16,350 points

Sampling Rate: 1 second to 24 hours

PC Interface: USB includes software

Power: 4 x AAA batteries

Dimensions:   4.5 x 2.5 x 1.3" (114 x 63 x 34mm)

Weight: 8.7oz (248g)

Complete with current clamp, test leads, USB cable, Windows® compatible software, universal AC Adaptor, and four AAA batteries



Details

Features:

  • Measure True RMS AC Voltage (600V) or Current (200A)
  • Readings can be downloaded to your PC via the USB interface and analyzed using the included software or exported to a spreadsheet
  • High/Low user-settable alarms
  • LCD indicates time/date, current readings, Min/Max, and whether alarm settings have been exceeded
  • Normal, Peak and Capture (user-specified trigger level) recording modes
  • Auto Power off and battery check
  • Complete with current clamp, test leads, USB cable, Windows compatible software, universal AC Adaptor, and 3.6V Lithium battery
