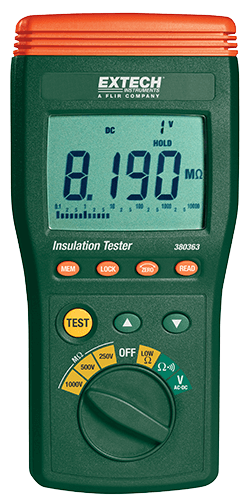

EXTECH 380363 Digital High Voltage Insulation Tester

Insulation Resistance: 4M , 40M , 400M , 4000M , 10G

Max Resolution: 1k

Basic Accuracy: ±3%

Insulation Test Voltages: 250V, 500V, 1000V

AC Voltage Test: Yes

Low Resistance Test: Yes

Power source: 6 x AA batteries

Dimensions: 9.3 x 4.6 x 2.1" (235 x 116 x 54mm)

Weight: 1.15lbs (520g)

Complete with carrying case, test leads, and 6 x AA batteries

Details

Features:

  • 250V, 500V and 1000V test voltages
  • Measure Insulation Resistance to 10GΩ
  • Large LCD display with analog bargraph
  • Lo ohms function for testing connections
  • Automatic discharge of capacitive voltage charges
  • AC/DC voltage measurement up to 999V
  • Manual data record and read function (9 sets)
  • Live circuit display warning and beeper
  • Complete with carrying case, test leads, and 6 x AA batteries
  • One year warranty
